Ovens

Models

TCN 50 PLUS- Natural Oven, capacity 50LT, with 7 programs x 10 steps

Working range: 5 °C above ambient temperature up to 300 °C. Net volume 50 liters. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with a range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').Safety class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with two wire shelves. External dimensions (width x height x depth): 665 x 635 x 470 mm. Weight 53 Kg. 230V / 1000W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application. Supplied with calibration report at 150 °C executed with instrument Accredia certificated.


Plus Version, 7 programs that can be memorized with 10 steps each (temperature, time) and a further basic program with a single operating step (temperature, time).
Packaging and transport included.

TCN 115 PLUS- Natural Oven, capacity 115LT, with 7 programs x 10 steps

Working range: 5 °C above ambient temperature up to 300 °C. Net volume 115 liters. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with a range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').

Safety class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with three wire shelves. External dimensions (width x height x depth): 815 x 750 x 600 mm. Weight 74 Kg. 230V / 1900W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application. Supplied with calibration report at 150 °C executed with instrument Accredia certificated.

Plus version, 7 programs that can be memorized with 10 steps each (temperature, time) and further basic program with single operating steps (temperature, time).
Packaging and transport included.

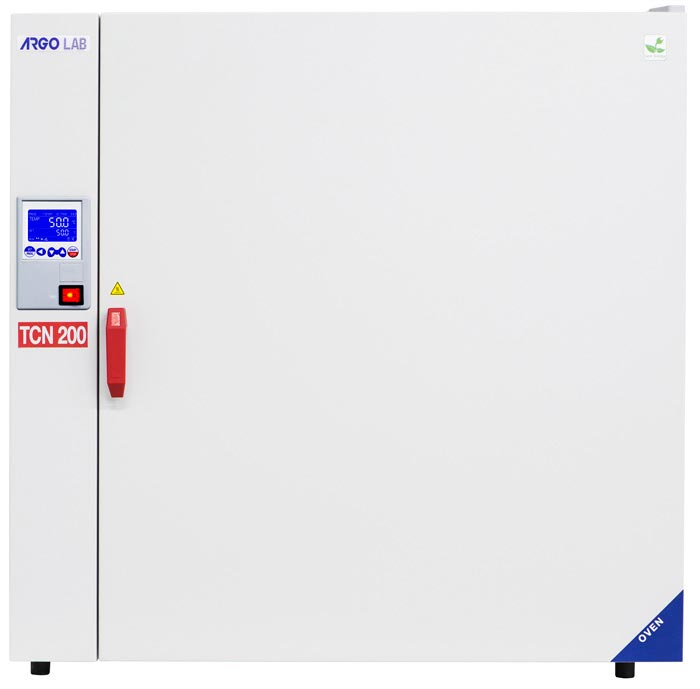

TCN 200 PLUS - Natural Oven, capacity 200LT, with 7 programs x 10 steps

Working range: 5 °C above ambient temperature up to 300 °C. Net volume 200 liters. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with a range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').

Safety class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with three wire shelves. External dimensions (width x height x depth): 915 x 905 x 660 mm. Weight 103 Kg. 230V / 2100W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application. Supplied with calibration report at 150 °C executed with instrument Accredia certificated.

Plus Version, 7 programs that can be memorized with 10 steps each (temperature, time) and a further basic program with a single operating step (temperature, time).
Packaging and transport included.

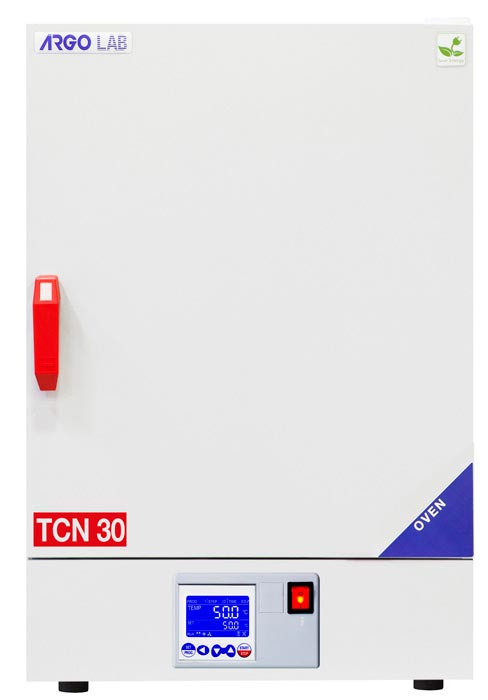

TCN 30 PLUS- Natural Oven, capacity 30LT, with digital control

Working range: 10 °C above ambient temperature up to 200 °C. Net volume 30 liters. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with a range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').

Safety class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with two wire shelves. External dimensions (width x height x depth): 460 x 660 x 530 mm. Weight 40 Kg. 230V / 700W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application. Supplied with calibration report at 150 °C executed with instrument Accredia certificated.

TCF 50 PLUS- forced air Oven, capacity 50LT, with 7 programs x 10 steps

Range: from 10 °C above ambient temperature up to 300 °C. Net volume of 50 litersTemperature variation in the time at 150 °C: ± 0.3 °C, temperature uniformity in the space at 150 °C: ± 2%. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').
Safety Class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with two wire shelves. External dimensions (width x height x depth): 690 x 635 x 570 mm. Weight 54 Kg. 230V / 980 W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application.
Supplied
with calibration report at 150 °C executed with instrument Accredia certificated.

Plus Version, 7 programs that can be memorized with 10 steps each (temperature, time, fan speed) and a further basic program with a single operating step (temperature, time, fan speed).
Packaging and transport included.

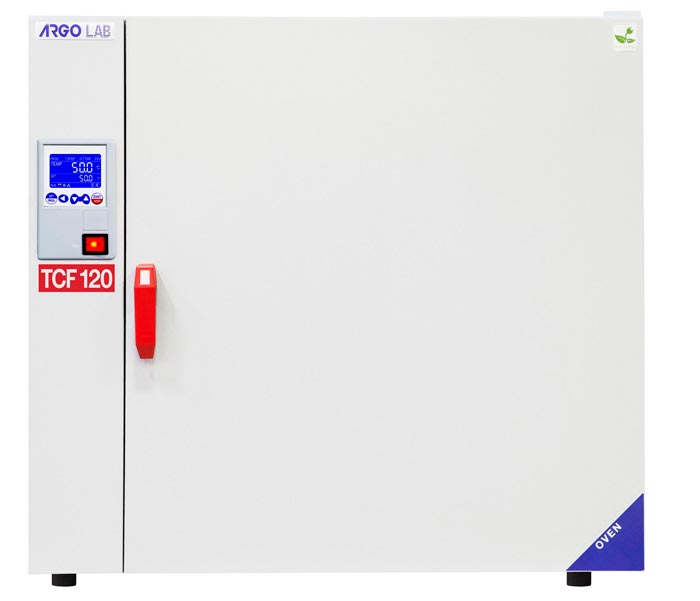

TCF 120 PLUS- forced air Oven, capacity 120 LT, with 7 programs x 10 st eps

Range: from 10 °C above ambient temperature up to 300 °C. Net volume of 120 liters.Temperature variation in the time at 150 °C: ± 0.3 °C, temperature uniformity in the space at 150 °C: ± 2%. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').

Safety Class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with three wire shelves. External dimensions (width x height x depth): 810 x 750 x 690 mm. Weight 74 Kg. 230V / 1900 W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application. Supplied with calibration report at 150 °C executed with instrument Accredia certificated.

Plus Version, 7 programs that can be memorized with 10 steps each (temperature, time, fan speed) and a further basic program with a single operating step (temperature, time, fan speed).
Packaging and transport included.

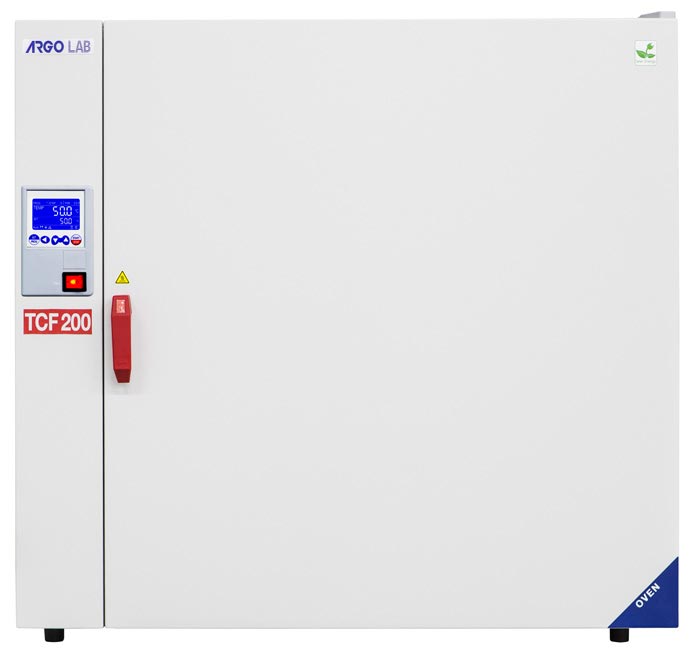

TCF 200 PLUS - forced air Oven, capacity 200LT, with 7 programs x 10 st eps

Range: from 10 °C above ambient temperature up to 300 °C. Net volume of 200 liters.Temperature variation in the time at 150 °C: ± 0.3 °C, temperature uniformity in the space at 150 °C: ± 2%. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').

Safety Class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with three wire shelves. External dimensions (width x height x depth): 920 x 870 x 755 mm. Weight 103 Kg. 230V / 2400 W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application. Supplied with calibration report at 150 °C executed with instrument Accredia certificated.

Plus Version, 7 programs that can be memorized with 10 steps each (temperature, time, fan speed) and a further basic program with a single operating step (temperature, time, fan speed).
Packaging and transport included.

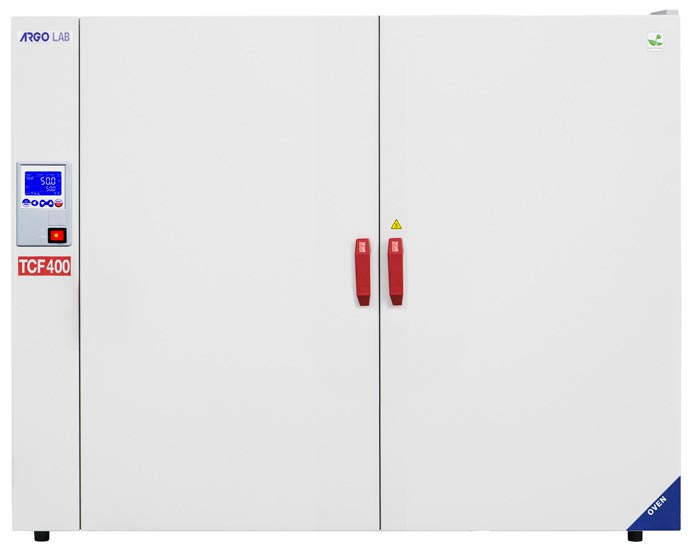

TCF 400 PLUS- forced air Oven, capacity 400LT, with 7 programs x 10 ste ps

Range: from 10 °C above ambient temperature up to 300 °C. Net volume of 400 liters.Temperature variation in the time at 150 °C: ± 0.3 °C, temperature uniformity in the space at 150 °C: ± 2%. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').

Safety Class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with three wire shelves. External dimensions (width x height x depth): 1285 x 1000 x 750 mm. Weight 160 Kg. 230V / 3200 W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application. Supplied with calibration report at 150 °C executed with instrument Accredia certificated.

Plus Version, 7 programs that can be memorized with 10 steps each (temperature, time, fan speed) and a further basic program with a single operating step (temperature, time, fan speed).
Packaging and transport included.

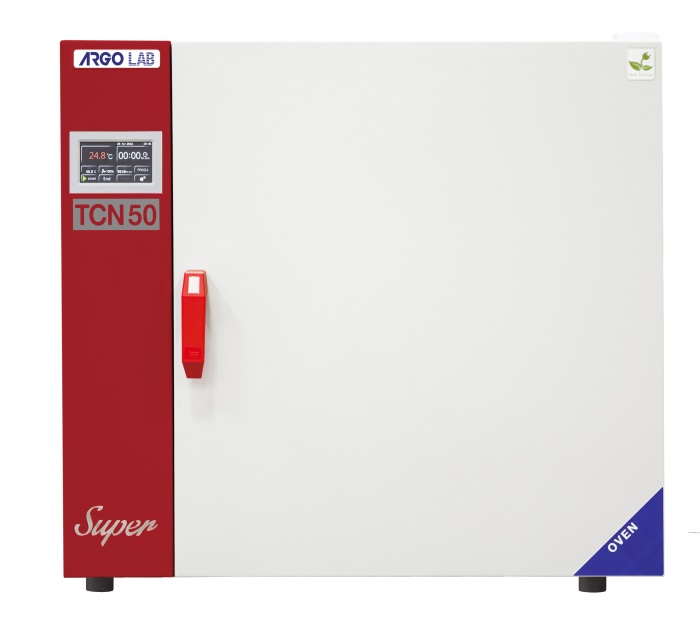

TCN 50 SUPER - Natural Oven, capacity 50LT, with touch screen display

Working range: 5 °C above ambient temperature up to 300 °C. Net volume 50 liters. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with a range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').Safety class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with two wire shelves. External dimensions (width x height x depth): 665 x 635 x 470 mm. Weight 53 Kg. 230V / 1000W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application. Supplied with calibration report at 150 °C executed with instrument Accredia certificated.

SUPER Version, color touch screen display, 8 programs that can be memorized with 8 steps each (temperature, time) and a further basic program with a single operating step (temperature, time). Recording of working data without limit on USB stick supplied.
Packaging and transport included.

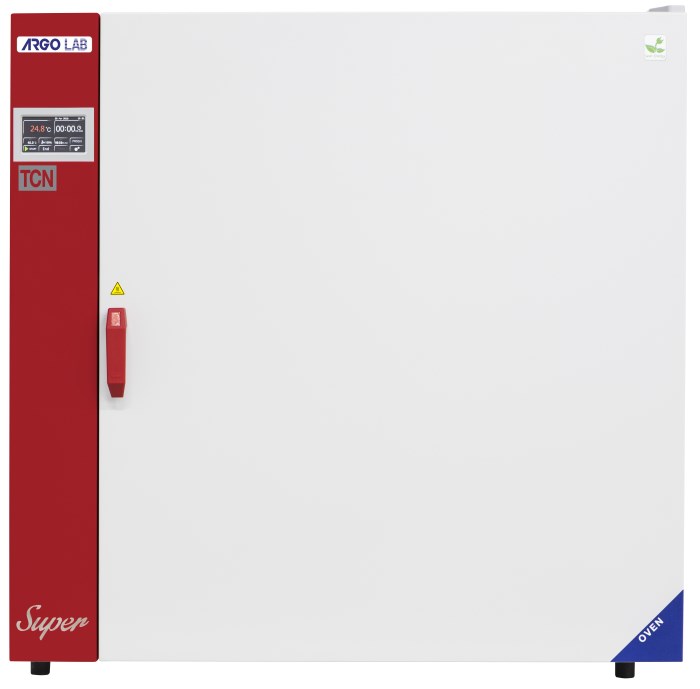

TCN 115 SUPER - Natural Oven, capacity 115LT, with touch screen

Working range: 5 °C above ambient temperature up to 300 °C. Net volume 115 liters. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with a range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').

Safety class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with three wire shelves. External dimensions (width x height x depth): 815 x 750 x 600 mm. Weight 74 Kg. 230V / 1900W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application. Supplied with calibration report at 150 °C executed with instrument Accredia certificated.

SUPER Version, color touch screen display, 8 programs that can be memorized with 8 steps each (temperature, time) and a further basic program with a single operating step (temperature, time). Recording of working data without limit on USB stick supplied.
Packaging and transport included.

TCN 200 SUPER - Natural Oven, capacity 200LT, with touch screen

Working range: 5 °C above ambient temperature up to 300 °C. Net volume 200 liters. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with a range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').

Safety class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with three wire shelves. External dimensions (width x height x depth): 915 x 905 x 660 mm. Weight 103 Kg. 230V / 2100W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application. Supplied with calibration report at 150 °C executed with instrument Accredia certificated.

SUPER Version, color touch screen display, 8 programs that can be memorized with 8 steps each (temperature, time), and a further basic program with a single operating step (temperature, time). Recording of working data without limit on USB stick supplied.
Packaging and transport included.

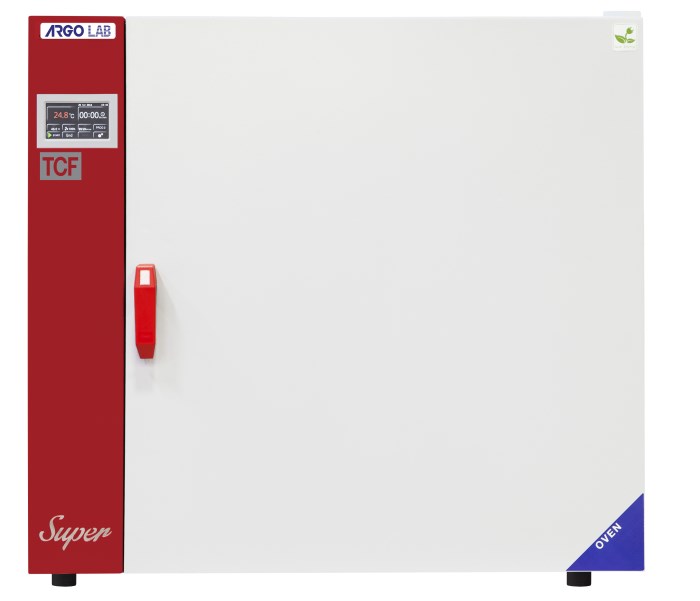

TCF 50 SUPER- forced air Oven, capacity 50LT, with touch screen

Range: from 10 °C above ambient temperature up to 300 °C. Net volume of 50 liters.Temperature variation in the time at 150 °C: ± 0.3 °C, temperature uniformity in the space at 150 °C: ± 2%. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').

Safety Class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with two wire shelves. External dimensions (width x height x depth): 690 x 635 x 570 mm. Weight 54 Kg. 230V / 980 W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application. Supplied with calibration report at 150 °C executed with instrument Accredia certificated.

SUPER version, color touch screen display, 8 programs that can be memorized with 8 steps each (temperature, time) and a further basic program with a single operating step (temperature, time, fan speed). Recording of working data without limit on USB stick supplied.
Packaging and transport included.

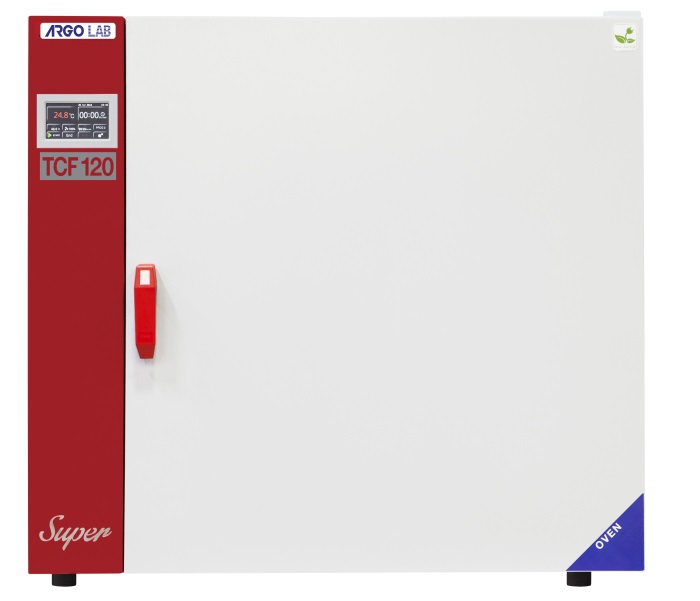

TCF 120 SUPER - forced air Oven, capacity 120 LT, with touch screen

Range: from 10 °C above ambient temperature up to 300 °C. Net volume of 120 liters.Temperature variation in the time at 150 °C: ± 0.3 °C, temperature uniformity in the space at 150 °C: ± 2%. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').

Safety Class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with three wire shelves. External dimensions (width x height x depth): 810 x 750 x 690 mm. Weight 74 Kg. 230V / 1900 W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application. Supplied with calibration report at 150 °C executed with instrument Accredia certificated.

SUPER Version, touch screen color display, 8 programs that can be memorized with 8 steps each (temperature, time) and a further basic program with a single operating step (temperature, time, fan speed). Recording of working data without limit on USB stick supplied.

TCF 200 SUPER- forced air Oven, capacity 200LT, with touch screen

Range: from 10 °C above ambient temperature up to 300 °C. Net volume of 200 liters.Temperature variation in the time at 150 °C: ± 0.3 °C, temperature uniformity in the space at 150 °C: ± 2%. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').

Safety Class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with three wire shelves. External dimensions (width x height x depth): 920 x 870 x 755 mm. Weight 103 Kg. 230V / 2400 W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application. Supplied with calibration report at 150 °C executed with instrument Accredia certificated.

SUPER Version, touch screen color display, 8 programs that can be memorized with 8 steps each (temperature, time, fan speed) and a further single step basic program (temperature, time, fan speed). Recording of working data without limit on USB stick supplied.
Packaging and transport included.

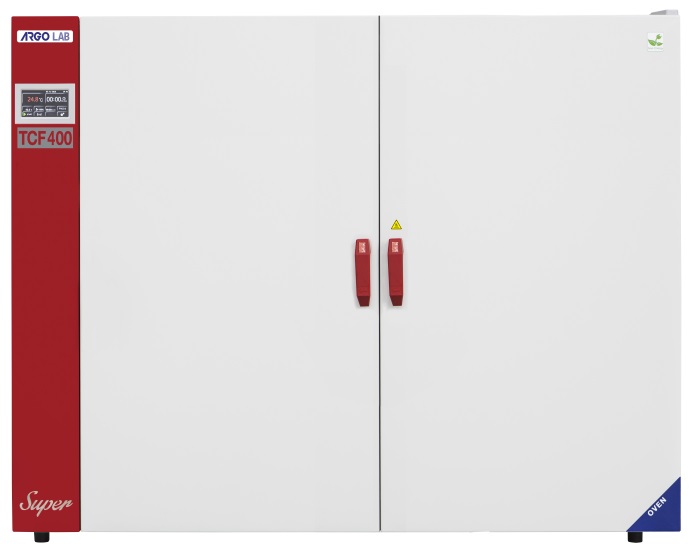

TCF 400 SUPER- forced air Oven, capacity 400LT, with touch screen

Range: from 10 °C above ambient temperature up to 300 °C. Net volume of 400 liters.Temperature variation in the time at 150 °C: ± 0.3 °C, temperature uniformity in the space at 150 °C: ± 2%. Digital PID controller with limited number of adjustment keys for easy parameter setting. Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters. Visual and audible Alarm be disable by the operator. Digital timer with range of programming 1 min - 99 h and 59 min. and continuous function. Possibility to set a delay in the start of the heating cycle. Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').

Safety Class 3.1 with double digital limiters of temperature and additional fluid expansion limiter. Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature. Stainless steel chamber with supports for the shelves completely removable for easy cleaning. Supplied with three wire shelves. External dimensions (width x height x depth): 1285 x 1000 x 750 mm. Weight 160 Kg. 230V / 3200 W. The minimum heating times and the reduced heating power guarantee low energy consumption in each application. Supplied with calibration report at 150 °C executed with instrument Accredia certificated.

SUPER Version, color touch screen display, 8 programs that can be memorized with 8 steps each (temperature, time, fan speed) and a further basic program with a single operating step (temperature, time, fan speed). Recording of working data without limit on USB stick supplied.
Packaging and transport included


Accessories

Steel wire shelf for TCN 50 / TCF 50

Steel wire Shelf for TCN115-TCF120-ICF120

Steel wire shelf for TCN200-TCF200-ICF200

Steel wire shelf for TCF 400

Steel wire shelf for TCN 30

Holed platform for TCN 50 - TCF 50

Holed platform for TCN115-TCF120-ICF120

Holed platform for TCN200-TCF200-ICF200

Holed platform for TCF400-ICF400

Holed platform for oven TCN 30

Set of 4 pcs wheels for ICN 200, ICF 200, TCN 200, TCF 200, TCF 400, IC F 400
